RockSpy
Rock
Spy
A really easy way to monitor
strata displacement.
A really
easy way
to monitor
strata
displacement.
How does it work?

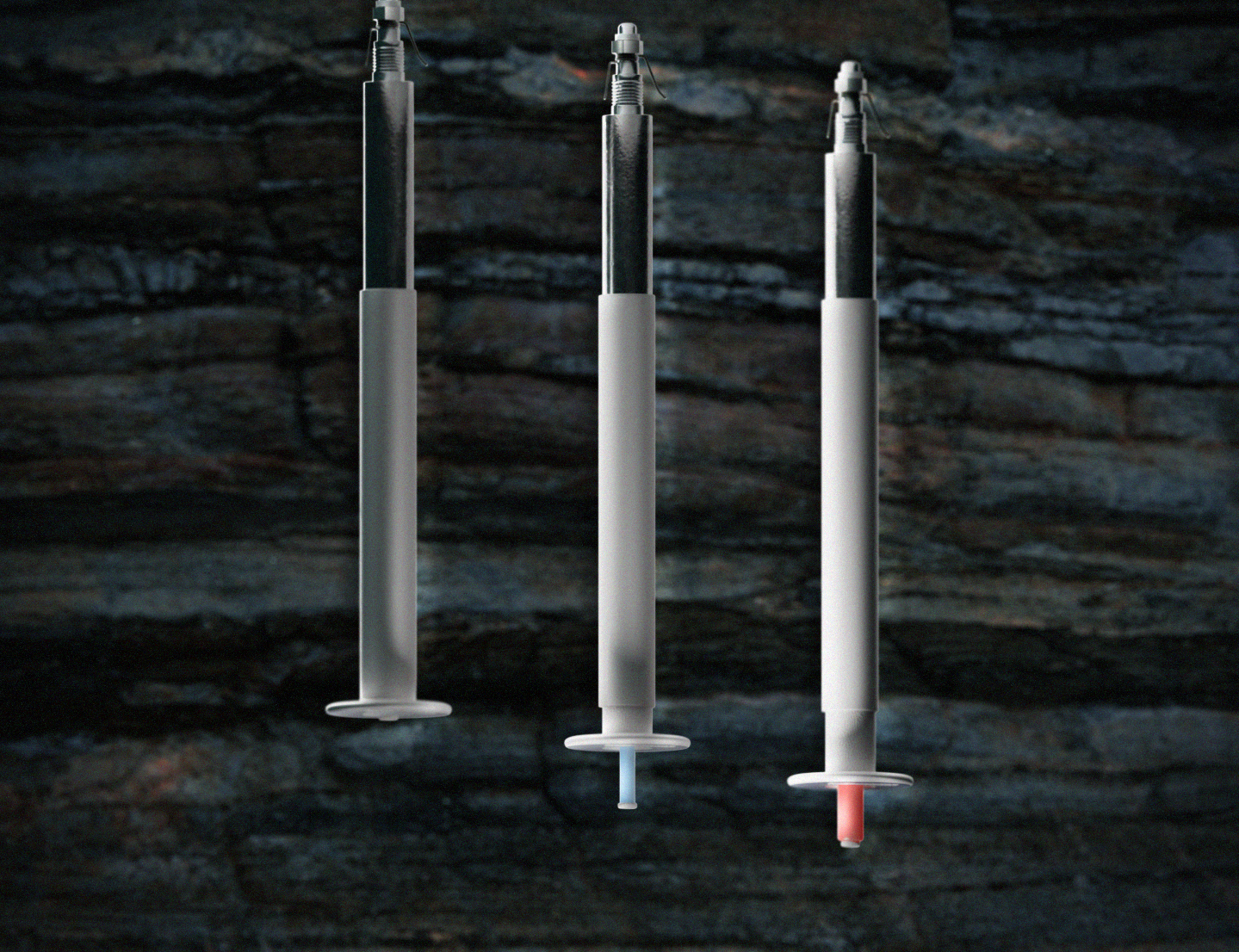

FIRST TRIGGER: The RockSpy is anchored in the competent strata layer. Once separation starts to occur, the roof or hanging wall will push the flange downwards. This will trigger a blue reflective piston and it will snap out.
SECOND TRIGGER: The roof or hanging wall might move again. The flange will be pushed further to trigger a red reflective piston. This piston will snap out over the blue reflective piston. The blue reflective piston is no longer visible.
-
Expected
separation -
Flange seated
against roof
or hanging wall
in its default
position -
First trigger
between
1 – 3mm
displacement -
Roof or hanging
wall pushes
flange
downwards when
and if separation
starts to occur -
Flange will trigger
blue reflective
piston due to
roof or hanging
wall moving
downwards -
Blue piston
indicates
first
movement -
RockSpy
anchored in
competent
strata -
Roof or hanging
wall further
pushes flange
downwards
after first
trigger occurred -
Red piston
indicates
second
movement -
Flange now
triggers red
and snaps over
blue reflective
piston
How to install

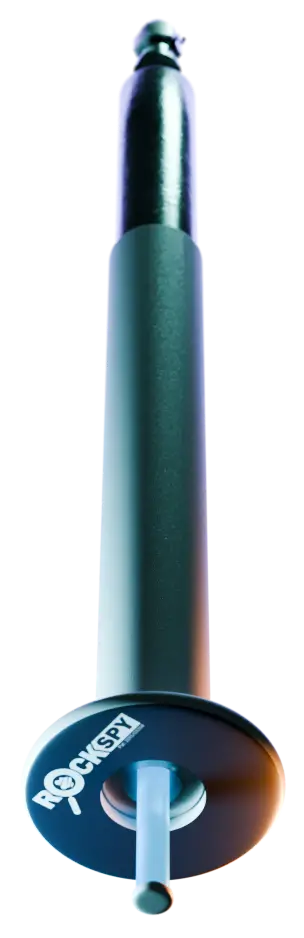

With the anchor point first, push the RockSpy upwards into the drilled hole. Once the locking-pin reaches the roof or hanging wall, remove the pin and push further until the **flange stops firmly against the roof or hanging wall. Ensure no gap is between the **flange and roof or hanging wall surface.
Major Benefits
- Early warning device
- Mechanical device – No Electronics
- Pistons snap out when triggered
- High visibility
- Fail safe device
- Length customizable
- Fits in most diameter holes
- 2 – Trigger system
- Suitable to low seam & stope heights
- Mine vehicle-friendly in low areas
- Can be used closer to blasting areas
- Cost effective for increased coverage
- First trigger set at 1 – 3mm
- Second trigger between 3 – *20mm
- Weatherproof
- Super easy to install
- Manufactured in South Africa
- Rugged & dependable
- No need for a trained eye
- Patented product
Q&A
Yes, Installation training can be arranged upon first
order received.
The RockSpy can be supplied in any given quantity. Slight price adjustments are made on devices longer than 2m.
The RockSpy was designed specifically to be installed in lower underground mining areas.
Apart from the **Flange, no other part protrudes from the drilled hole and makes the RockSpy less prone to vehicle and blasting damage.
For Purchase:
Contact
For Purchase:
Contact
* Mine specifies second displacement setting up to 20mm prior to manufacturing.
** When delivered, each RockSpy is pre-fitted with a locking-pin. The locking-pin ensures the device does not trigger when handled before and during installation.
